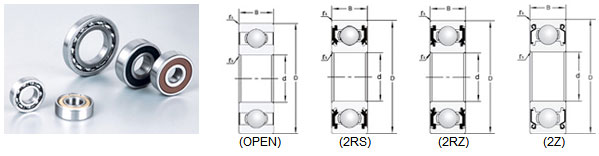

（深沟球轴承）英制 16 系列

轴承型号	外形尺寸(mm)				额定载荷(kN)		重量(kg)
轴承型号	d mm in.	D mm in.	B mm in.	r smin mm in.	Cr.0	Cor	Mass
1601	4.763 .1875	17.463 .6875	6.350 .2500	0.3 .012	1.511	0.724	0.004
1602	6.350 .2500	17.463 .6875	6.250 .2500	0.3 .012	1.511	0.724	0.006
1603	7.938 .3125	22.225 .8750	7.144 .2812	0.3 .012	2.547	1.342	0.010
1604	9.525 .3750	22.225 .8750	7.144 .2812	0.38 .015	2.547	1.342	0.015
1605	7.938 .3125	23.019 .9062	7.938 .3125	0.3 .012	2.547	1.342	0.012
1606	9.525 .3750	23.019 .9062	7.938 .3125	0.38 .015	2.547	1.342	0.014
1607	11.113 .4375	23.019 .9062	7.938 .3125	0.38 .015	3.556	1.938	0.016
1614	9.525 .3750	28.575 1.1250	9.525　3750	0.64 .025	3.921	2.245	0.035
1615	11.113 .4375	28.575 1.1250	9.525　3750	0.64 .025	3.921	2.245	0.034
1616	12.700 .5000	28.575 1.1250	9.525　3750	0.64 .025	3.921	2.245	0.030
1620	11.113 .4375	34.925 1.3750	11.113 .4375	0.64 .025	5.881	3.471	0.050
1621	12.700 .5000	34.925 1.3750	11.113 .4375	0.64 .025	5.881	3.471	0.048
1622	14.288 .5625	34.925 1.3750	11.113 .4375	0.64 .025	5.881	3.471	0.046
1623	15.875 .6250	34.925 1.3750	11.113 .4375	0.64 .025	5.881	3.471	0.040
1628	15.875 .6250	41.275 1.6250	12.700 .5000	0.64 .025	7.232	4.45	0.072
1630	19.050 .7500	41.275 1.6250	12.700 .5000	0.64 .025	7.232	4.45	0.065
1633	15.875 .6250	44.450 1.7500	12.700 .5000	0.64 .025	7.232	4.45	0.092
1635	19.050 .7500	44.450 1.7500	12.700 .5000	0.64 .025	7.232	4.45	0.085
1638	19.050 .7500	50.800 2.000	14.288 .5625	0.89 .035	10.80	6.95	0.120
1640	22.225 8750	50.800 2.000	14.288 .5625	0.89 .035	10.80	6.95	0.112
1641	25.400 1.000	50.800 2.000	14.288 .5625	0.89 .035	10.80	6.95	0.100
1652	28.575 1.125	63.500 2.500	15.875 .6250	0.89 .035	12.8	8.4	0.210
1654	31.750 1.250	63.500 2.500
