台州市东泰轴承有限公司

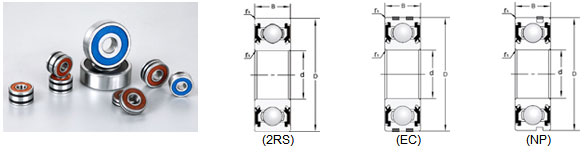

深沟球轴承（汽车发电机轴承）

外形尺寸(mm)				额定负荷(kN)		极限转速(rmp)			轴承型号		适用机型
外形尺寸(mm)				额定负荷(kN)		Grease		Oil	Beep Groove Ball Bearings		适用机型
d	D	B	r smin	Cr	Cor	Noncontact	contact		Ref.ON	YJ
8	22	11	0.3	3350	1370	32000	28000	37000	B8-74D	NPB8-74D-2RS	Alternators
	23	14	0.3	3910	1530	34000	30000	40000	B8-85D	B8-85D-2RS
	23	14	0.3	3910	1530	34000	30000	40000	B8-85D	NPB8-85D-2RS
	23	14	0.3	3910	1530	34000	30000	40000	B8-23D	ECB8-23D-2RS
	23	11	0.3	3910	1530	34000	30000	40000	B8-79D	B8-79D-2RS
	23	11	0.3	3910	1530	34000	30000	40000	B8-79D	ECB8-79D--2RS
10	23	11	0.3	2700	1270	33000	23000	38000	B10-46D	B10-46D-2RS	Alternators
	26	8	0.3	4570	1970	30000	22000	36000	6000TT	EC6000-2RS
	26	10	0.3	4570	1970	30000	22000	36000	62000-2RS	62000-2RS
	27	11	0.3	4570	1970	30000	22000	36000	B10-50D	B10-50D-2RS
	27	11	0.3	4570	1970	30000	22000	36000	B10-50D	B10-51D-2RS
	27	11	0.3	4570	1970	30000	22000	36000	B10-50D	ECB-50D-2RS
	27	11	0.3	4570	1970	30000	22000	36000	B10-50D	NPB10-50D-2RS
12	32	10	0.6	6160	2770	22000	17000	28000	6201-2RS	6201-2RS	Alternators
	35	18	0.6	7750	3570	20000	14000	24000	214	214-2RS
	37	12	1.0	9700	4200	20000	15000	24000	6301-2RS	6301-2RS
	40	12	1.0	9700	4200	20000	15000	24000	B12-40D	B12-40D-2RS
	40	10	0.6	7690	3830	20000	14000	24000	B12-53D	B12-53D-2RS
15	32	11	0.3	5600	2840	23000	14000	28000	366	366-2RS	Alternators
	35	11	0.6	7750	3570	20000	14000	24000	6202-2RS	6202-2RS
	35	11	0.6	7750	3570	20000	14000	24000	6202TT	EC6202-2RS
	35	13	0.6	7750	3750	20000	14000	24000	279	279-2RS
	35	13	0.6	7750	3750	20000	14000	24000	B15-69	B15-69-2RS
	35	13	0.6	7750	3750	20000	14000	24000	B15-69	NPB15-69-2RS
	38	12	0.6	7750	3750	20000	14000	24000	SC0299ZLU	SC0299ZLU
	38	19	0.6	7750	3750	2000	14000	24000	348	348-2RS
	40	14	0.6	9550	4800	17000	12000	20000	B15-85D	B15-85D-2RS
	43	13	1.0	11400	5450	17000	13000	20000	319	319-2RS
	45	14	1.0	13580	6590	15000	11000	18000	B15-45D	B15-45D-2RS
	46	14	1.0	13580	6590	15000	11000	18000	336	336-2RS
	46	14	1.0	13580	6590	15000	11000	18000	336	NP336-2RS
	47	14	1.0	13580	6590	15000	11000	18000	B15-86D	B15-86D-2RS
	47	18	1.0	13580	6590	15000	11000	18000	B15-83D	B15-83D-2RS
	42	13	1.0	11400	5450	17000	13000	20000	6302-2RS	6302-2RS
	42	13	1.0	11400	5450	17000	13000	20000	EC6302-2RS	EC6302-2RS
	52	16	1.0	15930	7875	14000	10000	17000	382-2RS	382-2RS
17	40	12	0.6	9550	4800	17000	12000	20000	6302-2RS	6203-2RS	Alternators
	40	12	0.6	9550	4800	17000	12000	20000	6203TT	EC6203-2RS
	47	14	1.0	13580	6590	15000	11000	18000	6303-2RS	6303-2RS
	47	18	1.0	13580	6590	15000	11000	18000	B17-107D	B17-52D-2RS
	47	24	1.0	13580	6590	15000	11000	18000	303WPP	6303/24-2RS
	52	15	1.1	15930	7875	14000	10000	17000	B17-52D	B17-52-2RS
	52	16	1.1	15930	7875	14000	10000	17000	333	333-2RS
	52	17	1.1	15930	7875	14000	10000	17000	B17-99D	B17-99D-2RS
	52	18	1.1	15930	7875	14000	10000	17000	B17-116D	B17-116D-2RS
